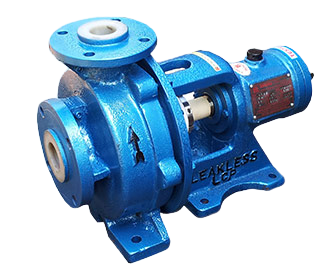

PVDF (Injection-Molded) And PTFE Lined Back Pull Out Pumps
We LEAKLESS (INDIA) ENGINEERING are leading manufacturer and exporter Of LCP Series PVDF (Injection-Molded) And PTFE Lined Back Pull Out Pumps , specially designed for highly corrosive liquids and high temperature applications. These types of pumps deliver outstanding performance with economical prices .The range being easy in use and demands minimum maintenance. Pumps offer thick injection molded casing with C.I Or S.S casing liner insert for strength of casing with easy replaceable method. Semi open (Injection-Molded) Impeller with metal insert. Excellent mechanical properties over a wide range of temperatures up to 150º C.
Material Of Construction
- POLYVINYLIDENE FLUORIDE (PVDF)
- POLYTETRAFLUOROETHYLENE (PTFE)
Applications And Industries Served
- CHEMICAL PROCESS UPTO 150OC
- ORGANIC/IN ORGANIC CHEMICAL
- HIGHLY CORROSIVE ACID TRANSFER
- AIR CONDITIONING
- EFFLUENT
- ELECTRO PLATING
- HIGHLY CORROSIVE ACID TRANSFER
- DYES AND PIGMENTS
- SCRUBBER UNIT
- WATER TREATMENT
- SOLVENTS UNLOADING
- TRANSFER OF LIQUID
Operating Range For PVDF (Injection-Molded) And PTFE Lined Back Pull Out Pumps
| Capacity : | Up to 150 m3/Hr |
| Head: | Up to 80 Meters |
| Speed : | 1450 to 2850 RPM |
| Pump Size-DN: | 19mm To 100mm |
| Temp: | Up to -60° C - +150° C |
