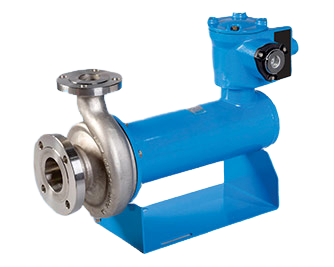

Canned Motor Pump
Canned Motor Pump (LCMP Series) :Pumps are of centrifugal monoblock design , Manufactured either single or multistage type For various application & reliable performance. LEAKLESS canned motor pumps are completely close circuit pumps without mechanical seals or gland so absolutely sealless & glandless which results 100% Leak proof. An ideal long life pump which is maintenance free , trouble free & leak free for years and years. If fed up of leakages from seals or gland. LEAKLESS canned motor pump gives a reliable and leak free performance and it doesn’t consist any liquid sealing part. Leakage of process liquid is prevented by a means of canned chamber which conceals motor winding , Hence process liquids is totally avoided to pass out from shaft & pump body. Bearings are inbuilt self lubricated with process liquid. Specially suitable for 100% leak proof application.
Features And Advantages
- Compact design of monoblock type , So
- very less space required
- Flame proof & explosion proof motor
- No driver couplings , So no alignment , no
- vibration & low noise
- No routine maintenance required
- No Mechanical Seals or gland , So 100% leak proof
- No inventory spares
- No External lubrication for bearings
- Easy repairable at site
Material Of Construction
- CAST IRON
- CAST STEEL (WCB)
- CD4MCu
- S.S 316 (CF8M)
- S.S 304 (CF8)
- S.S 316L (CF3M)
- HASTELLOY B (N12MV)
- HASTELLOY C (CW12MW)
- ALLOY 20 (CN7M)
- DUPLEX SS (GRADE 4A,5A,6A)
- NICKEL (CZ-100)
- MONEL (M-35)
- CARPENTAR 20 (CK-20)
- NI-HARD
- BRONZE
- GUN METAL
- HARD METAL CASTING
Applications And Industries Served
- TRANSFER AND RE-CIRCULATION OF AMMONIA LIQUID
- COLD STORAGE
- FISH PROCESSING PLANT
- MEAT PROCESSING PLANT
- FROZEN FOODS PLANT
- CHILLING PLANT
- OIL AND PETROCHEMICAL REFINERIES
- ICE PLANT
- TRANSFER AND RE-CIRCULATION OF EXPENSIVE LIQUID
- THERMAL POWER
- TRANSFER AND RE-CIRCULATION OF HAZARDOUS LIQUID
- NUCLEAR POWER
- TRANSFER AND RE-CIRCULATION OF EXPLOSIVE LIQUID
- TRANSFER AND RE-CIRCULATION OF TOXIC LIQUID
Operating Range For Canned Motor Pump
| Capacity : | Up to 100 m3/Hr |
| Head: | Up to 100 Mtr |
| Speed : | 2900 RPM |
| Pump Size-DN: | 25mm To 100mm |
| Temp: | Up to +150o C |
