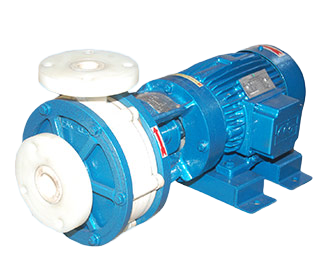

Monoblock Pumps
We LEAKLESS (INDIA) ENGINEERING Manufacture LMP Series Monoblock Pumps especially designed to occupy minimum space and provide versatile performance. The pump is attached to motor with single shaft avoiding the use of coupling minimizing weight, Installation space and vibration. Sounds very economical compared to coupled type pumps. These pumps are provided with mechanical seal type and gland packing type as per the liquid application. Considering the limited space where sufficient space is not available these pumps are compact designed to save your useful space of plant.
Material Of Construction
- POLYPROPYLENE (P.P)
- ULTRA HIGH MOLECULAR WEIGHT (UHMW-PE)
- POLYVINYLIDENE FLUORIDE (PVDF)
- GLASS FILLED POLYPROPYLENE (G.F.P.P)
- POLYTETRAFLUOROETHYLENE (PTFE)
- CAST IRON
- CAST STEEL (WCB)
- CD4MCu
- S.S 316 (CF8M)
- S.S 304 (CF8)
- S.S 316L (CF3M)
- HASTELLOY B (N12MV)
- HASTELLOY C (CW12MW)
- ALLOY 20 (CN7M)
- DUPLEX SS (GRADE
- 4A,5A,6A)
- PHOSPHORUS BRONZE)
- TITANIUM
- NI-HARD
- HARD METAL CASTINGS
- GUN METAL
Applications
- BARREL LOADING/UNLOADING
- UNDERGROUND TANK UNLOADING
- EFFLUENT TREATMENT PITS
- DETERGENTS AND CAUSTICS
- SOLVENTS UNLOADING
- EFFLUENT TREATMENT
- DRUM UNLOADING
- SPRINKLE SYSTEMS
- FUMES SCRUBBING
- FITLERPRESS UNITS
- HEAT EXCHANGER
- ACID TRANSFER
- LOADING/UNLOADING
- COOLING TOWERS
- CHILLING PLANT
- EJECTOR SYSTEMS
Operating Range For MONOBLOCK Pumps
| Capacity : | Up to 500 m3/Hr |
| Head: | Up to 100 Meters |
| Speed : | 1450 to 2850 RPM |
| Pump Size-DN: | 19mm To 100mm |
| Temp: | Up to -20° C - +150° C |
